R60 PRO TIJ Controller Printhead
In Thermal Ink Jet

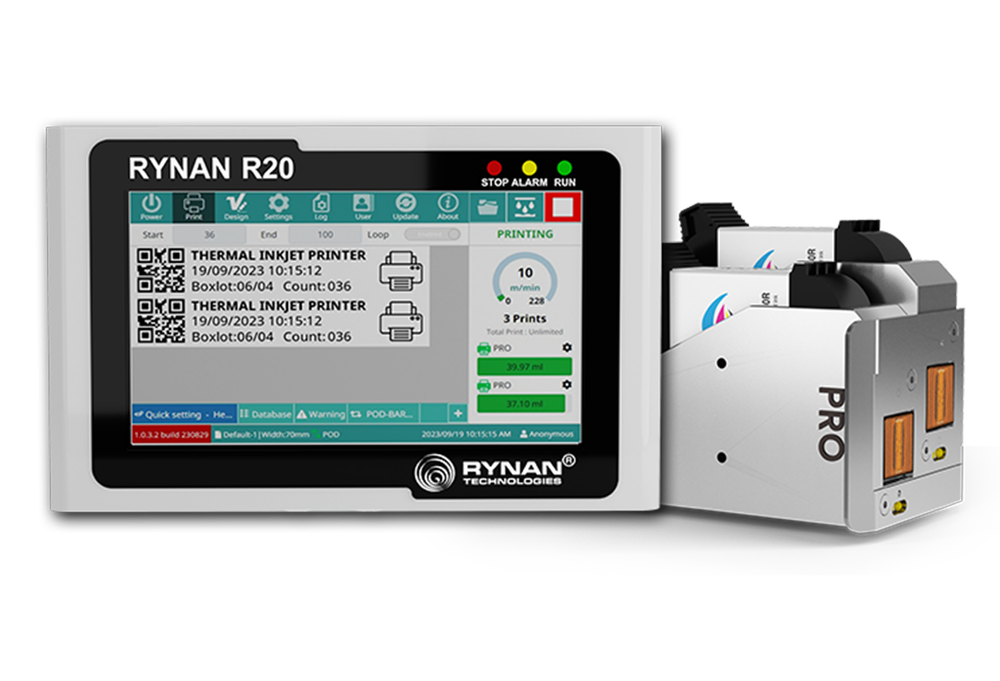

R20 Controller & Pro Printhead
The RYNAN R20 Controller paired with PRO Printheads represents the next evolution in thermal inkjet (TIJ 2.5) printing technology. Featuring a 7-inch touchscreen interface, the R20 system supports up to two high-speed PRO printheads for dual-line or large-format printing. Engineered for flexibility and performance, this advanced printer control system easily integrates into packaging and production lines—delivering precise, high-resolution prints on demand across a wide range of substrates.
BA R20 Pro LVDS.pdf
Printing Technology
HP TIJ 2.5
Controller Dimensions
214.4 x 138.6 x 49.9mm
Printhead Dimensions
173.7 x 81.95 x 49.13mm
Controller Weight
1,102.8g
Print Head Weight
284.8g
Display
7” LCD Touch Screen
Power Supply
AC 100V–240V, 50/60Hz, DC 24V 2.5A
Resolutions
Max 600 dpi x 600 dpi
Print Speed
76m/min @ 300x300 dpi
Density
3 levels
Throw Distance
1~5mm
