R20 Controller & Max Printhead

R20 Controller & Max Printhead

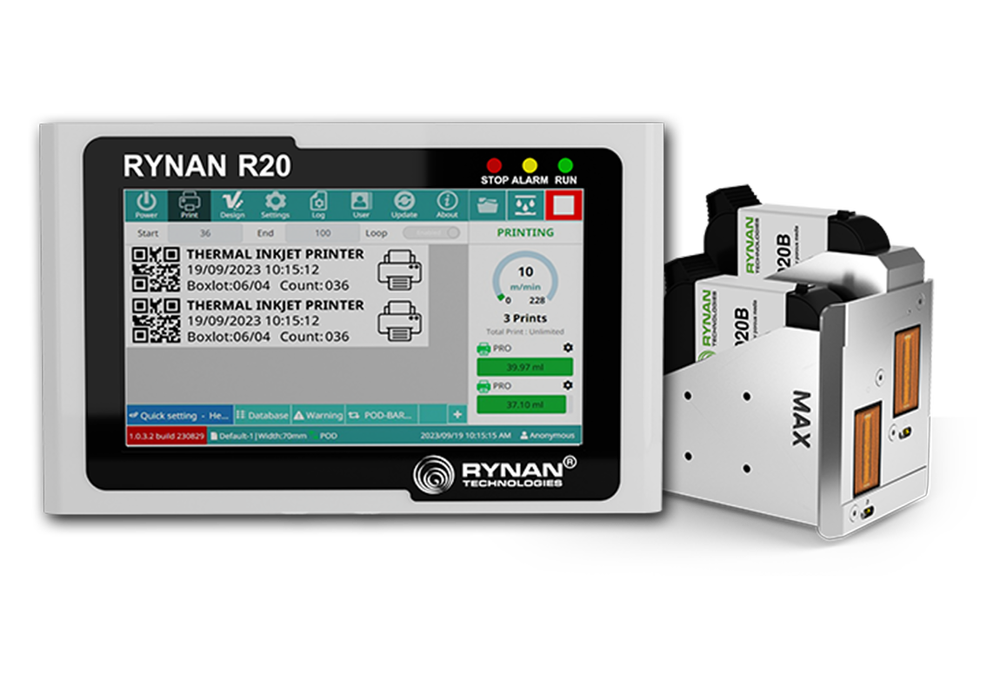

The RYNAN R20 Controller combined with the MAX Printhead offers a robust and versatile thermal inkjet (TIJ 1) printing solution for high-demand production environments. Equipped with a 7-inch touchscreen, the R20 easily manages up to two MAX printheads, delivering exceptional print quality at high speeds. The MAX printhead is designed for durability and performance, producing crisp variable data, barcodes, batch numbers, and expiry dates on a wide variety of surfaces. With flexible connectivity options, simple integration, and industrial-grade reliability, the R20 and MAX system is the ideal choice for seamless, high-resolution packaging and product coding.
Go to enquiry list
BA R20 Max LVDS.pdf
Printing Technology 1 Inch TIJ
Controller Dimensions 214.4 x 138.6 x 49.9mm
Printhead Dimensions 173.7 x 95.93 x 49.13mm
Controller Weight 1,102.8g
Print Head Weight 308.8g
Display 7” LCD Touch Screen
Power Supply AC 100V–240V, 50/60Hz, DC 24V 2.5A
Resolutions Max 300 dpi x 600 dpi
Print Speed 40m/min @ 300x300 dpi
Density 3 levels
Throw Distance 1~5mm
