R20 Controller & REACH Printhead

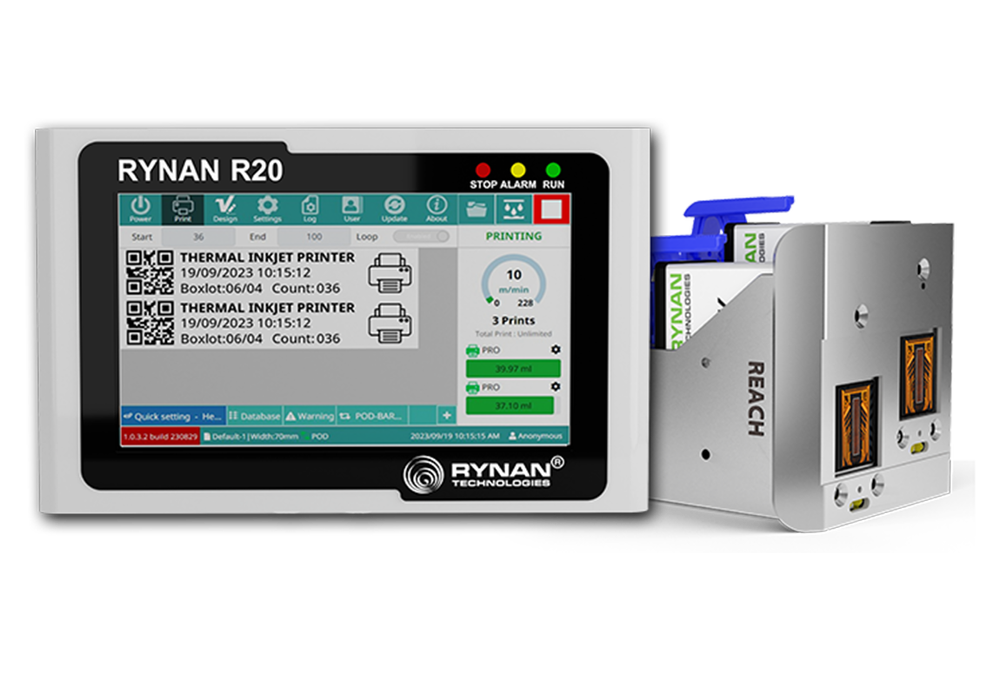

The RYNAN R20 Controller paired with the REACH Printhead delivers next-level performance in thermal inkjet (TIJ 2.5) printing. Designed for precision and speed, this powerful combination features a 7-inch touchscreen controller capable of operating up to two REACH printheads simultaneously. Ideal for high-speed production lines, it prints sharp, high-resolution codes, barcodes, batch numbers, and expiry dates on porous, semi-porous, and non-porous surfaces. With user-friendly controls, multiple connectivity options, and durable construction, the R20 with REACH is built for reliable, industrial-grade marking across diverse packaging applications.
BA R20 Reach LVDS.pdf
Printing Technology
Funai TIJ
Controller Dimensions
214.4 x 138.6 x 49.9mm
Printhead Dimensions
136.1 x 86.85 x 64.6mm
Controller Weight
1,102.8g
Print Head Weight
312.4g
Display
7” LCD Touch Screen
Power Supply
AC 100V–240V, 50/60Hz, DC 24V 2.5A
Resolutions
Max 300 dpi x 600 dpi
Print Speed
Up to 45m/min @ 300x200 dpi
Density
3 levels
Throw Distance
1~10mm
